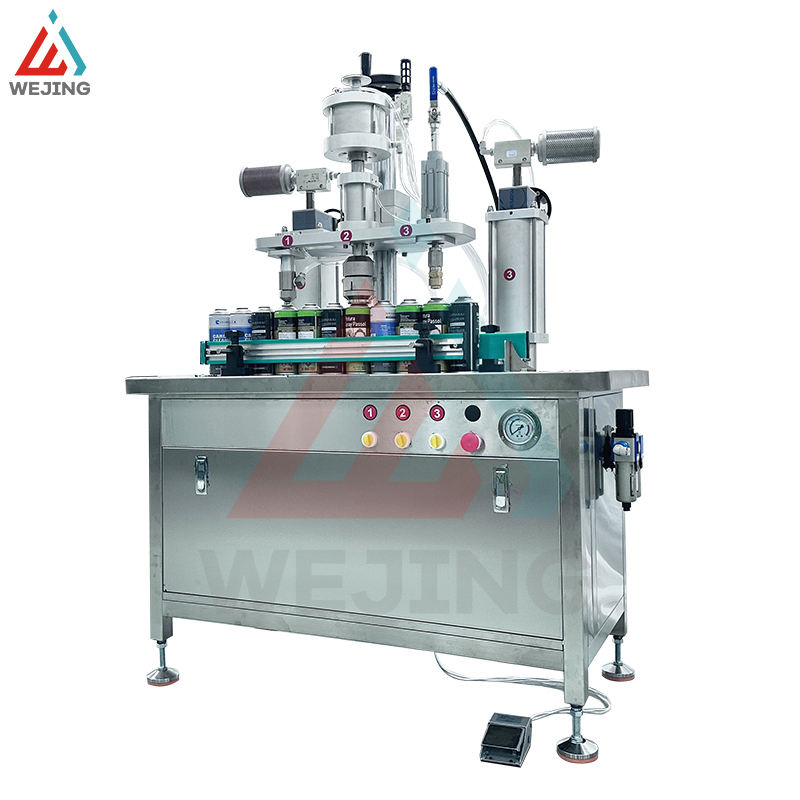

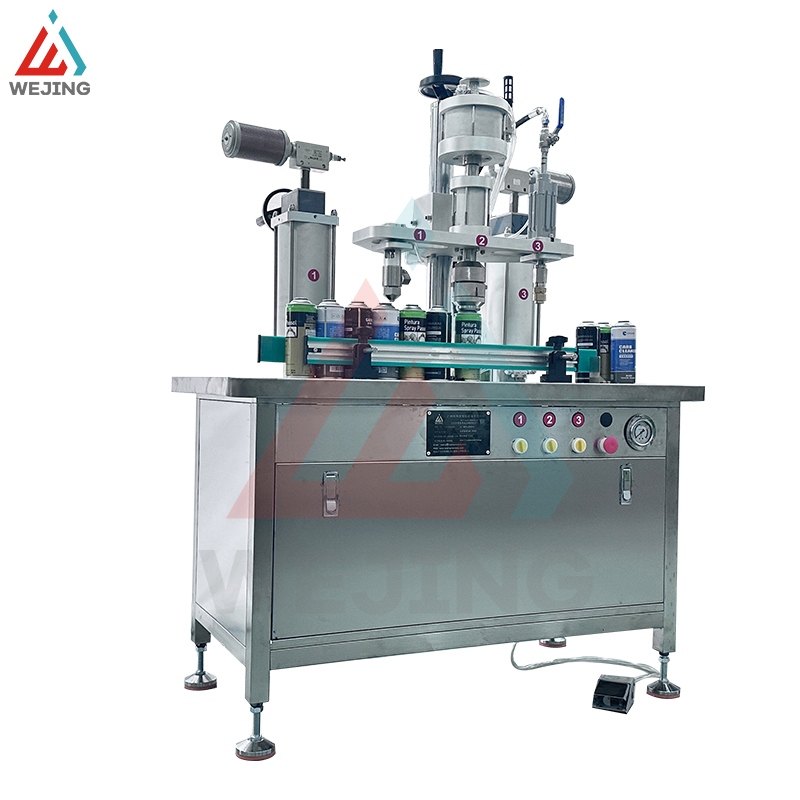

Manual 3 in 1 aerosol filling machine

The semi-automatic aerosol filling machine 3-in-1 has three functions: liquid filling, sealing, and inflation. During the filling stage, this machine can accurately control the filling amount to ensure that the liquid volume of each aerosol bottle is consistent, providing reliable assurance for product quality. The subsequent sealing process adopts advanced sealing technology to strictly ensure the sealing of the aerosol bottle, effectively preventing liquid leakage and external impurities from entering. During the inflation process, the accurately measured gas is sprayed into the tank and completely mixed with the liquid to achieve the best usage effect. The semi-automatic design not only automates the process to a certain extent, improves efficiency, but also makes it easier for operators to control and adjust anytime and anywhere, providing an efficient and reliable solution for aerosol production.

    Automatic Bag On Valve Aerosol Filling MachinePRODUCT PARAMETERS

    Capacity

    600-1200 cans/hr,depending on filing volume

    Liquid filling capacity

    30-500ml(can be choose)

    Gas filling capacity

    30-500ml(can be choose)

    Filling accuracy

    ≤±1%

    Applicable can diameter

    40-70mm

    Suitable aerosol can height

    70-300mm

    Air source

    0.5-0.6Mpa

    Size

    120*60*155cm(L*W*H)

    Product Advantages

    1. Multi functional integration, liquid filling, sealing, and inflation are integrated to improve production efficiency, reduce space and costs.
    2. Filling accuracy, advanced measuring system, ensures accurate liquid and gas filling volume, constant capacity, and stable product quality.
    3. The seal is reliable, using high-quality technology to ensure sealing and leakage prevention. After careful testing, it can withstand pressure and temperature changes. Semi automatic control, with automation level, real-time monitoring and adjustment, flexible adaptation to different product requirements.
    4. Easy maintenance, reasonable structure, sturdy key components, long service life, operation manual and maintenance manual for regular maintenance and troubleshooting.

    PRODUCT Applications

    1.In household chemistry, it can be utilized to fill cosmetics sprays like makeup spray and moisturizing spray, as well as personal care products including hair spray and mousse.
    2.In the pharmaceutical industry, it is suitable for the production of medical sprays and disinfectant sprays.
    3.In industry, it can be used for products like lubricating oil spray and separating agent spray.
    4.For car care products such as cleaners and tire gloss, and home cleaning products like air fresheners and glass purifiers.
    Aerosol products
