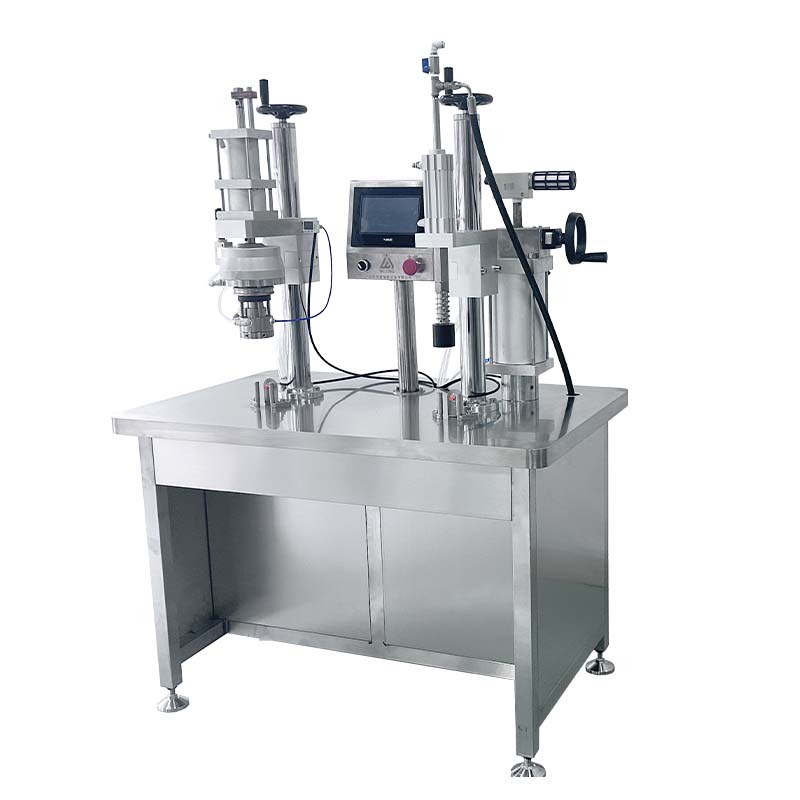

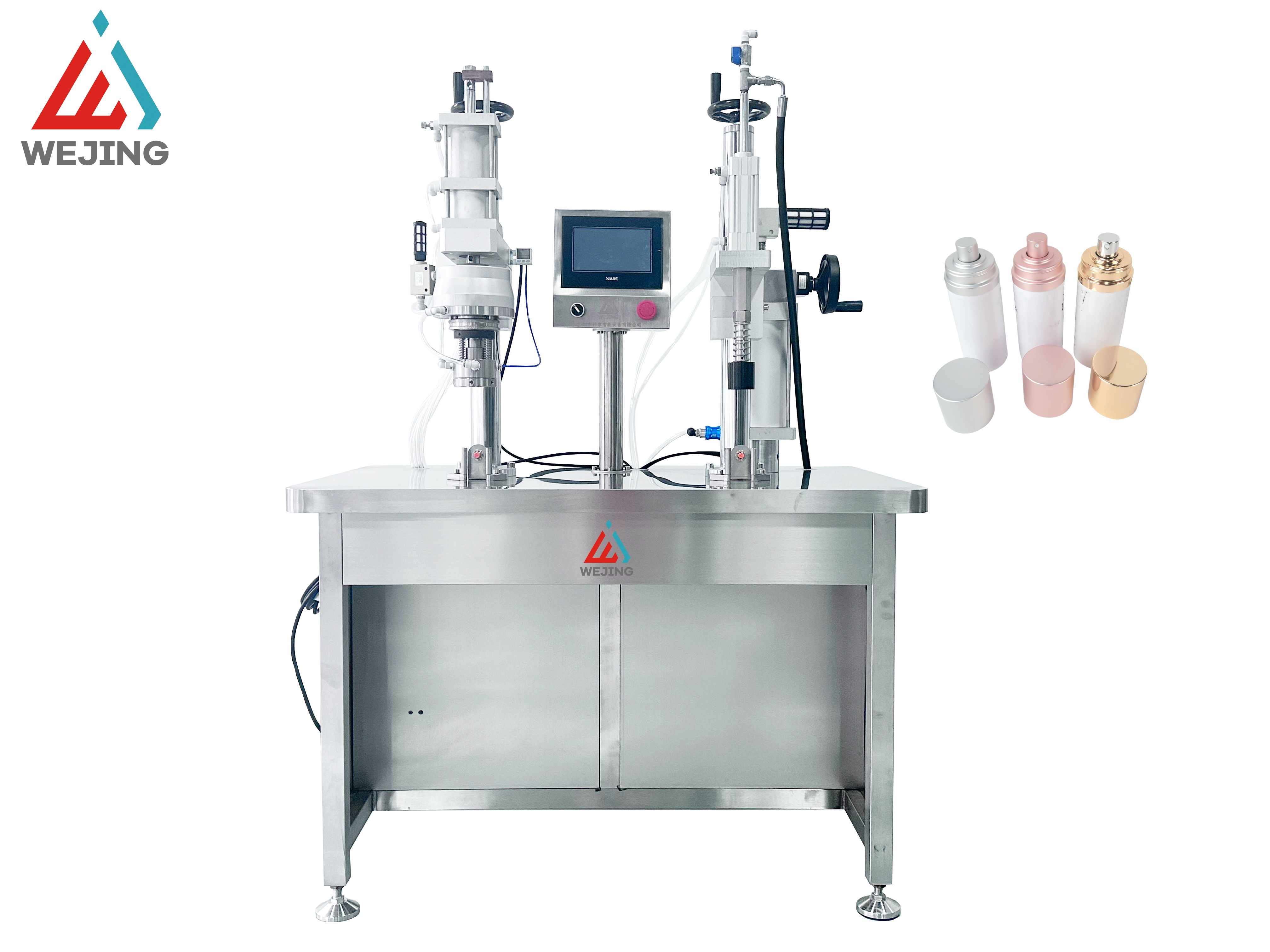

Semiautomatic BOV Deodorant Spray Filling Machine
Semi Automatic BOV Filling MachinePRODUCT PARAMETERS
|
Filling capacity (cans/min) |
10-15 cans/min |
|
Liquid filling volume (ml) |
30-300ml |
|
Gas filling accuracy |
±0.03Mpa |
|
Liquid filling accuracy |
≤±1% |
|
Applicable cans diameter (mm) |
35-70 ( can be customized) |
|
Applicable cans height (mm) |
70-330 ( can be customized) |
|
Applicable valve (mm) |
25.4 (1 inch BOV) |
|
Propellant |
N2, compressed air |
|
Max gas consumption (m3/min) |
1m3/min |
|
Power (KW) |
AC 220V/50HZ |
|
Air source |
0.6-0.7Mpa |
|
Dimensions |
1200×650×1670 mm |
|
Weight |
255 kg |
High filling accuracy
Through advanced systems, precise control of gas volume ratio ensures stable product quality and reduces errors.
High security
We could set pressure parameters in this machine, when the pressure value is lower or higher than our parameter, this machine will not seal the valve, then we could find problem easily, no need to waste more cans.
Easy Clean
This machine has self-cleaning function, we only need put the liquid pipe into the cleaning material tank, and then press clean auto mode, then the liquid filling function will suck the cleaning material automatically, no need worker operate it.
Save Labor
This machine combines air filling & sealing and liquid filling into one working table, then only one worker could operate it, it could save labor costing.
Cheap Price
This price is friendly for the small factory, especially for those new start factory.
Product Applications
1. Food field: It could fill oil spray, avocado oil spray and some other oil spray.
2. Industrial filed: It can fill water-base fire extinguisher, especially for the portable one.
3. Cosmetic filed: In China, mostly people use it to fill moisture spray, sun-block spray, and in middle east country, people use it to make deodorant spray.
2. Industrial filed: It can fill water-base fire extinguisher, especially for the portable one.
3. Cosmetic filed: In China, mostly people use it to fill moisture spray, sun-block spray, and in middle east country, people use it to make deodorant spray.
