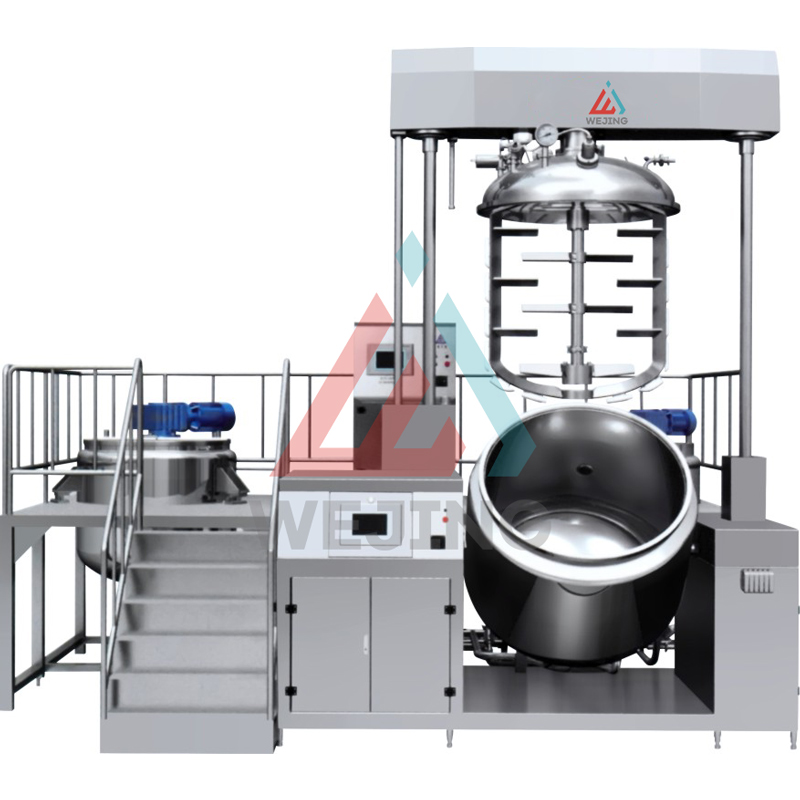

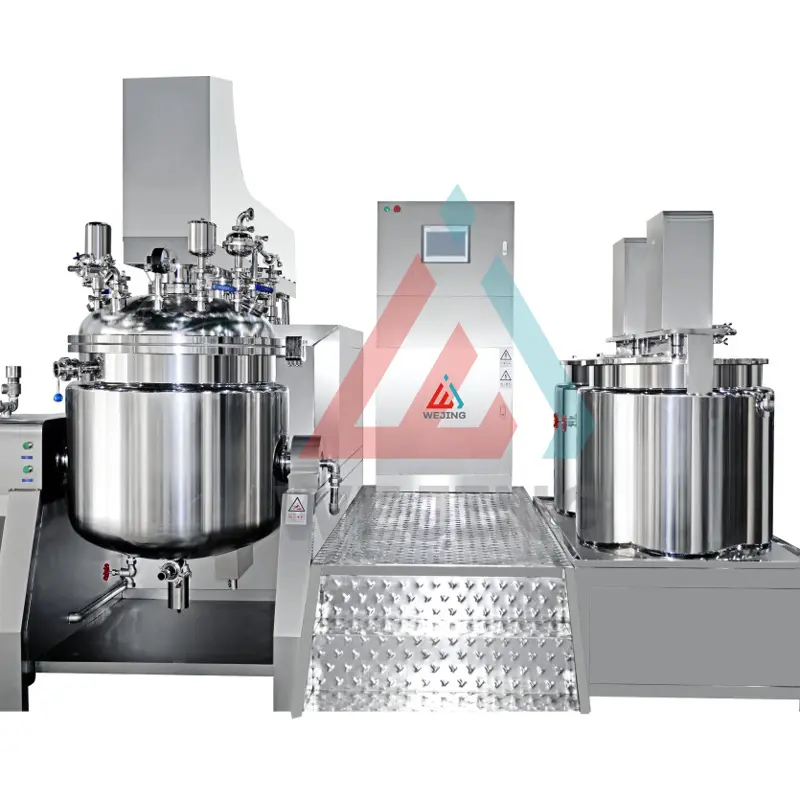

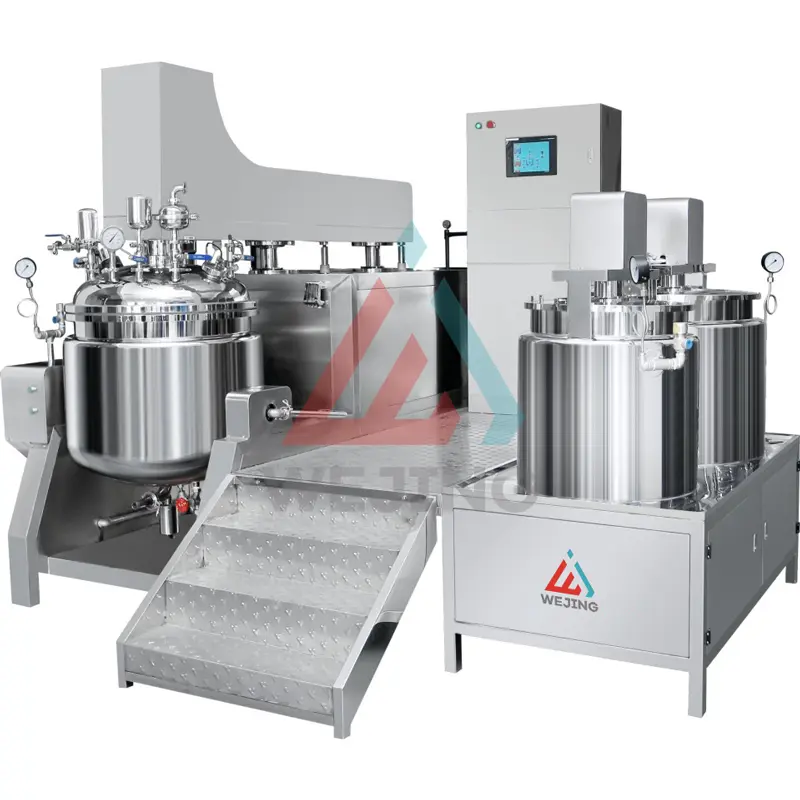

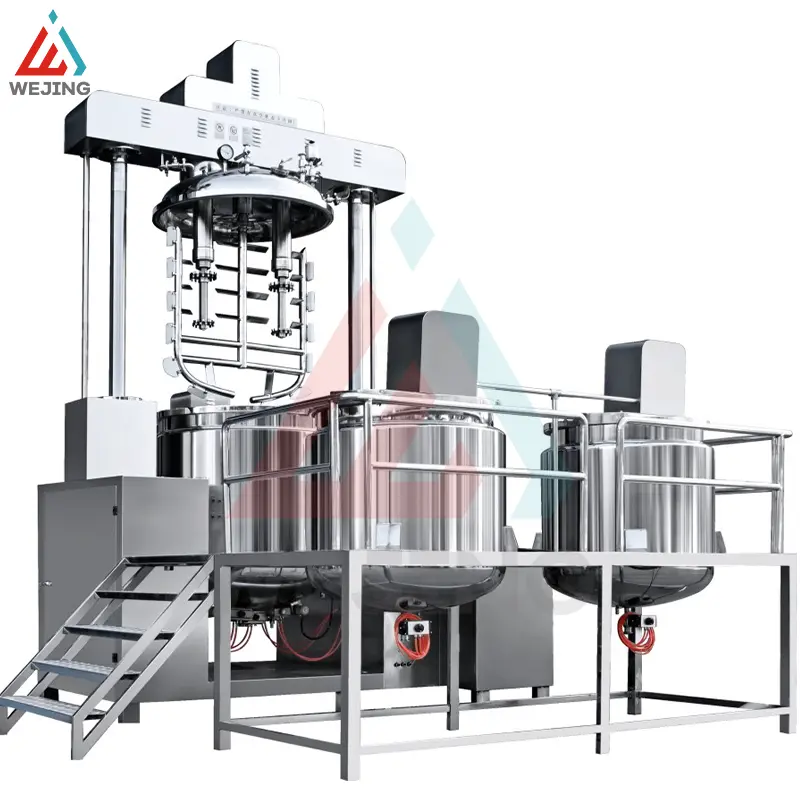

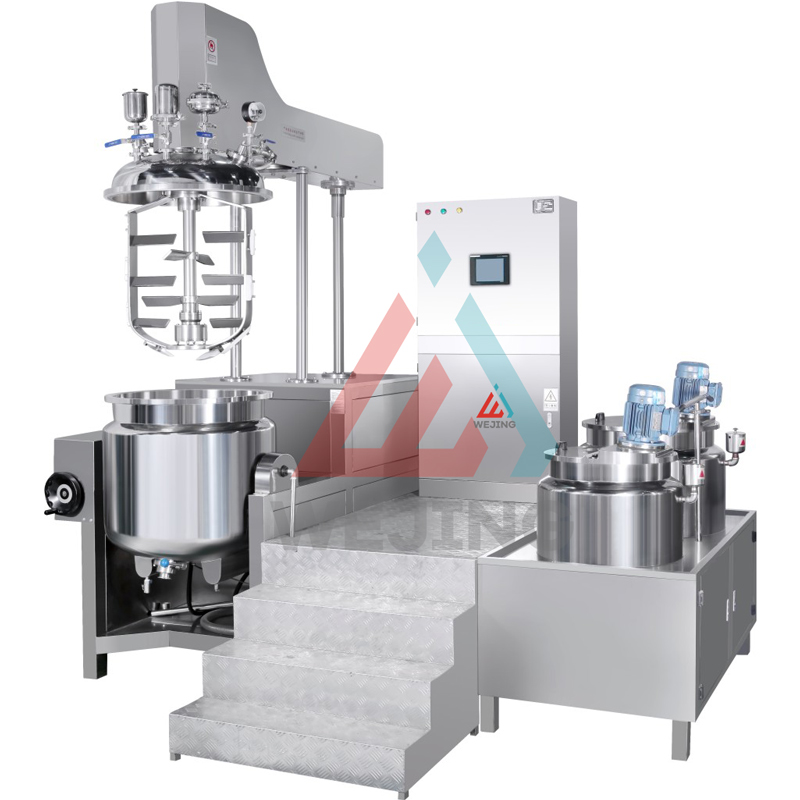

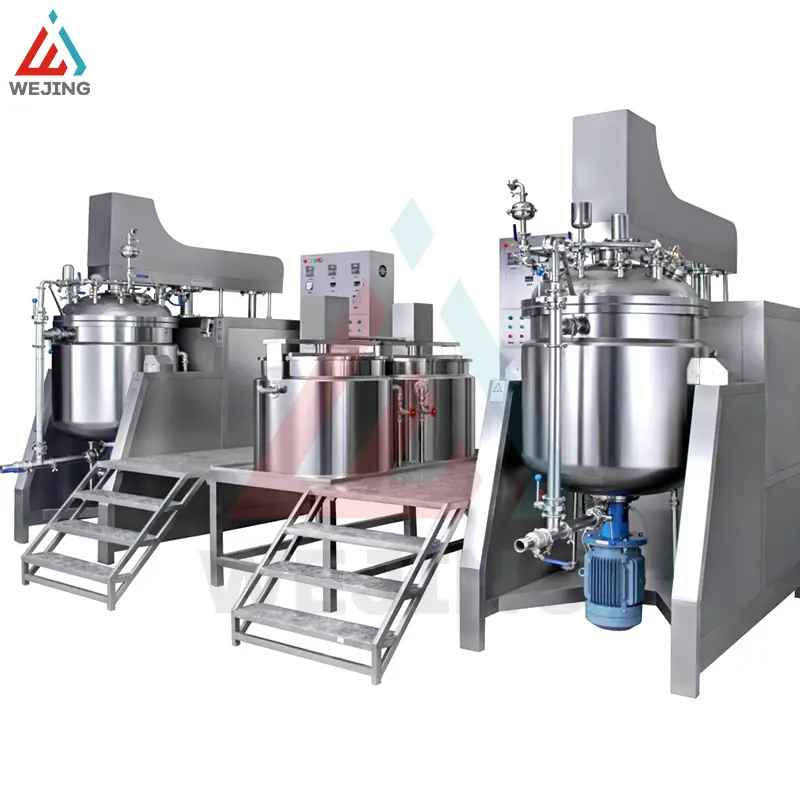

PLC Control Vacuum Homogenizer Emulsifying Mixer
Vacuum Emulsifying MixerPRODUCT PARAMETERS
|
Model |
Capacity(L) |
Mixing |
Homogenizing |
||
|
Power（kw） |
Speed(r/min） |
Power（kw） |
Speed(r/min） |
||
|
WJ-LTP10 |
10 |
0.37 |
0-63 |
1.5 |
0-6000 |
|
WJ-LTP50 |
50 |
0.75 |
0-63 |
3 |
0-6000 |
|
WJ-LTP100 |
100 |
1.5 |
0-63 |
4 |
0-6000 |
|
WJ-LTP200 |
200 |
2.2 |
0-63 |
5.5 |
0-6000 |
|
WJ-LTP300 |
300 |
3 |
0-63 |
7.5 |
0-6000 |
|
WJ-LTP500 |
500 |
4 |
0-63 |
11 |
0-6000 |
Pot body
Three layer stainless steel imported plate welding, corrosion-resistant sealing, mirror polished tank body and pipeline, in compliance with GMP requirements.
Mixing system
The material is thoroughly mixed in both directions and finely processed by a homogenizer to improve stability and fineness.
Vacuum pump
Extract air to form a vacuum, avoid bubbles, and facilitate mixing and emulsification.
Heating and cooling system
steam or electric heating, circulating water or coolant cooling.
Control system
PLC, precise control of mixing speed, homogenization speed, temperature, vacuum degree and other parameters.
Product Advantages
1. Efficient Mixing and Homogenization Outcome:
The integration of bidirectional stirring and the upper homogenization apparatus enables materials to be thoroughly mixed and homogenized, enhancing product quality and stability.
2. Vacuum Defoaming Capability:
It has the ability to eliminate bubbles within the material, resulting in a more compact and glossy product structure and prolonging the product's shelf life.
3. User - friendly Operation:
The control system employs PLC or touch - screen control, which is straightforward and convenient to operate. It can achieve automated production and boost production efficiency.
4. Easy - to - clean Feature:
For some equipment, the main pot lid can be furnished with a lifting device, and the pot body can be used for pouring out materials, which makes equipment cleaning more convenient.
5. Conformance to Hygiene Standards:
The liquid - receiving part of the equipment is constructed from stainless steel material, meeting the requirements of GMP and other hygiene standards and guaranteeing the hygiene and safety of the product.
Product Applications
1. Daily chemical industry: for producing cosmetics, creams, lotions, masks, cleaning products, toothpaste, etc.
2. Pharmaceutical industry: for making Chinese and western ointments, gels, suspensions, capsules, oral liquids, nutrient liquids, vaccines and other drugs.
3. Food industry: for processing salad dressings, chocolate sauces, cardadas, seasoning sauces, food additives, beverages, jams and other foods like various pastry sauces.
4. Chemical industry: for producing cleaning agents, polishes, lubricants, pigments, preservatives, solvents, coatings, paints, dyes, etc.
2. Pharmaceutical industry: for making Chinese and western ointments, gels, suspensions, capsules, oral liquids, nutrient liquids, vaccines and other drugs.
3. Food industry: for processing salad dressings, chocolate sauces, cardadas, seasoning sauces, food additives, beverages, jams and other foods like various pastry sauces.
4. Chemical industry: for producing cleaning agents, polishes, lubricants, pigments, preservatives, solvents, coatings, paints, dyes, etc.
