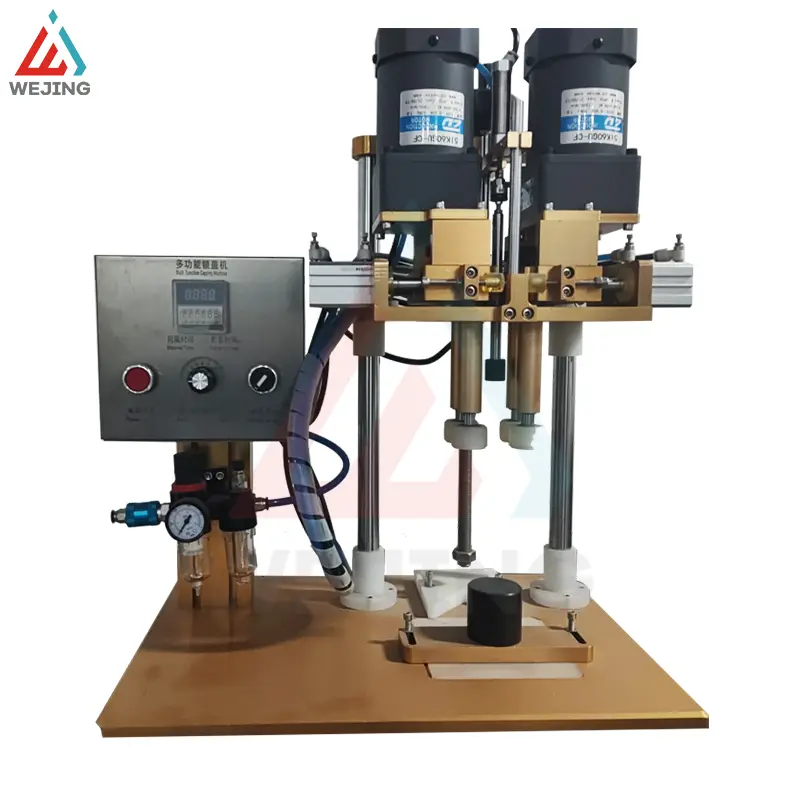

Semi Automatic Capping Machine
Capping and Labeling MachinePRODUCT PARAMETERS
|
Lock cover diameter range |
18-65 mm (customizable) |
|
Lock cover working status |
Manual/Automatic Mode |
|
Size of products |
350*500*650mm |
|
Power |
220V50HZ/120W |
|
Blocking speed |
25-45 bottles/minute |
|
Working pressure |
0.3-0.6Mpa |
|
Gross weight |
25Kg |
01
7 Jan 2019

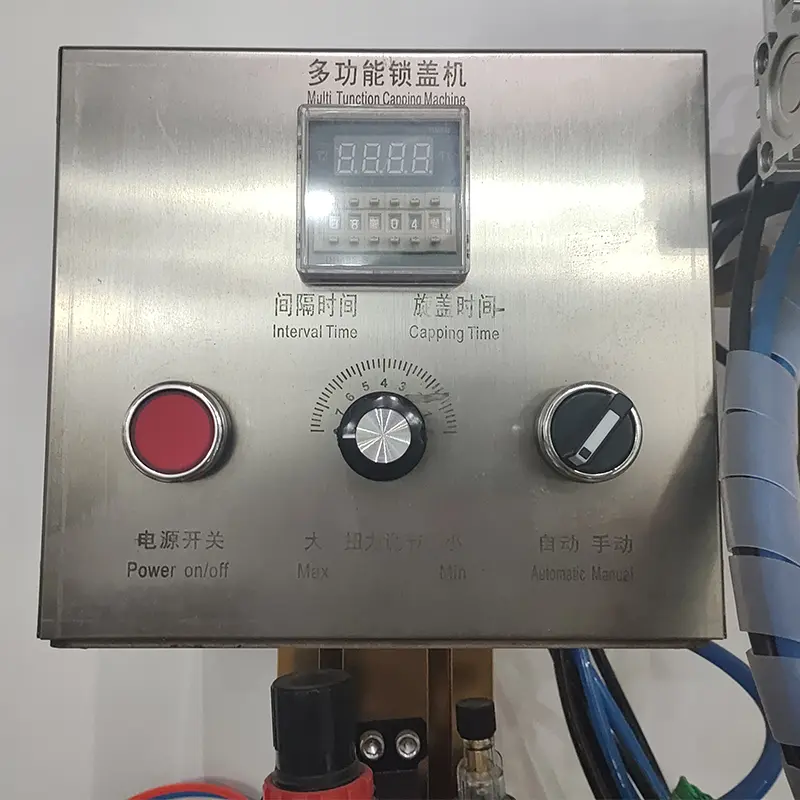

1. Adjust the interval time based on the+and - signals, and adjust the length of the tightening cover on the right side. Usually, intervals are used in automatic mode rather than manually.
2. Adjust the screw wheel height of the whole machine according to the bottle cap height, and then adjust the bottle cap height to stretch the optical axis of the top cap cylinder to the lowest level. The POM on the top cover is about 5 millimeters lower than when the bottle cap is released.
2. Adjust the screw wheel height of the whole machine according to the bottle cap height, and then adjust the bottle cap height to stretch the optical axis of the top cap cylinder to the lowest level. The POM on the top cover is about 5 millimeters lower than when the bottle cap is released.
02
7 Jan 2019
3. Adjust the left and right guide rails so that the wheels are attached to the cover, adjust the width, and fix the adjusting nut.
4. Place the bottle at the center of the four wheels.
5. Connect the gas pipe and power supply, and turn on the gas and electricity. Press the power switch, turn on the regulator, switch the third gear to manual mode, and then press the foot switch to control the machine.
6. Double time relay on the left side, used to adjust the machine interval time
4. Place the bottle at the center of the four wheels.
5. Connect the gas pipe and power supply, and turn on the gas and electricity. Press the power switch, turn on the regulator, switch the third gear to manual mode, and then press the foot switch to control the machine.
6. Double time relay on the left side, used to adjust the machine interval time
Product Characteristics
1. Precise tightening: It can precisely tighten the lid on the container to ensure good sealing.
2. Widely applicable: It can be used for bottle caps and containers of different specifications, with strong versatility.
3. Easy to operate: The operation is relatively simple, easy to master, and does not require complex technical training.
4. Reasonable cost: As a semi-automatic equipment, it is more affordable and suitable for small and medium-sized enterprises.
2. Widely applicable: It can be used for bottle caps and containers of different specifications, with strong versatility.
3. Easy to operate: The operation is relatively simple, easy to master, and does not require complex technical training.
4. Reasonable cost: As a semi-automatic equipment, it is more affordable and suitable for small and medium-sized enterprises.
Product Applications
It is suitable for various kinds of bottles.
