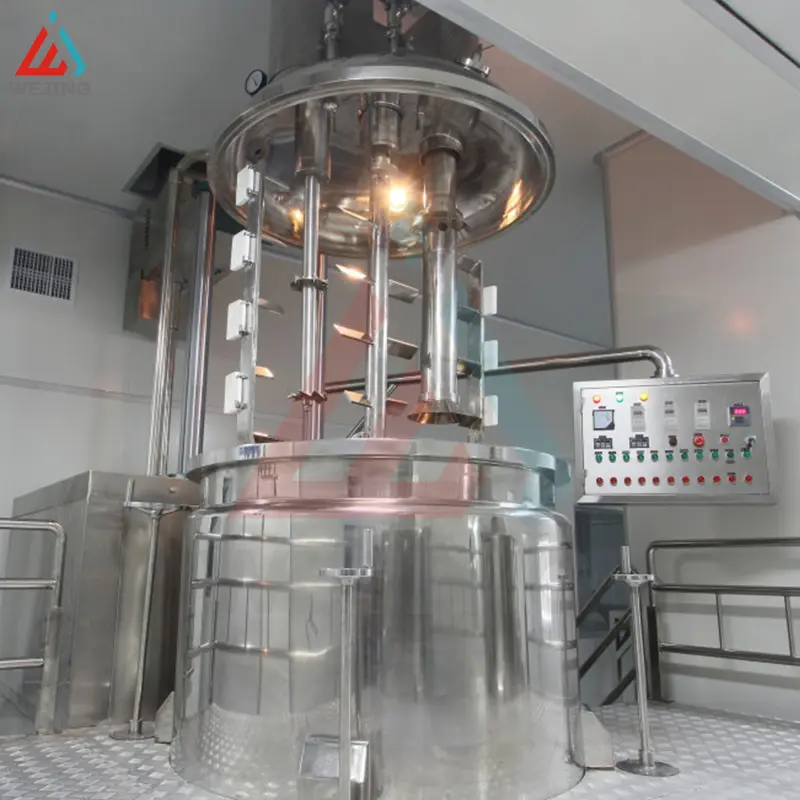

Toothpaste Vaccum Mixing Machine

Vacuum paste machines are widely used in industries such as toothpaste production, cosmetics, food, and chemical engineering to produce sticky paste. The complete set of equipment consists of a paper machine, a pre mixing pot, a glue tank, a powder tank, a glue pump, and a control platform. By adopting advanced mixing technology, multiple raw materials can be quickly and uniformly mixed. Easy to manage and highly automated can improve production efficiency. Designed to be sturdy and durable, easy to clean and maintain, ensuring product hygiene and quality.

overview

Vacuum Emulsifying MixerPRODUCT PARAMETERS

Model	Capacity (L)	Vacuum pump (kW)	Hydraulic pump (kW)	Dimensions (length x width x height) (mm)	Weight (kg)
WJ-PS100	100	3	1.1	245015002040	2500
WJ-PS700	700	4	1.5	453038002460	3000
WJ-PS1300	1300	7.5	2.2	192039103200	4500

Product Advantages

1. Wide application range, can meet the production needs of adhesive paste in different industries
2. High degree of automation, easy operation, low manual intensity
3. The production process is carried out in a vacuum environment, effectively preventing oxidation and bubble formation, ensuring product quality.

Working Principle

1. Different types of raw materials are stored in different areas, and powder raw materials are stored in powder tanks. When the production of the paste agent begins, the powder components in the powder hopper are dispensed according to the prescribed ratio and transferred to the mixing tank of the paste machine.

2. The liquid components are also accurately added to the mixing container. The mixing device starts working, and the mixer blades rotate at a certain speed and in a certain way. During the mixing process, the leaves carefully mix the powder and liquid components.

3. The stirring process can be heated or cooled as needed to allow the paste to react and mixed at the desired temperature. During the mixing process, the ingredients gradually become a uniform paste.

4. When the paste reaches the desired state, stop mixing and remove the finished paste from the machine for further packaging and other processes.

Product Applications

The vacuum paste machine series is a powerful equipment combination mainly used for producing adhesive paste machines in industries such as toothpaste, cosmetics, food, and chemicals.
