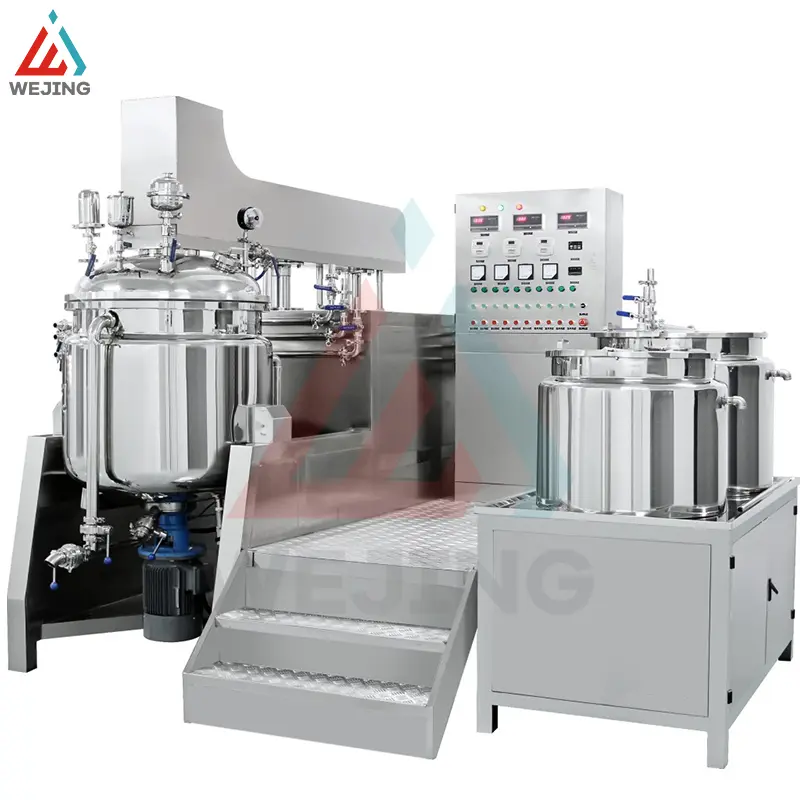

Under Hydraulic Vacuum Mixer Machine
Vacuum Emulsifying MixerPRODUCT PARAMETERS
|
Model |
Capacity (L) |
Mixing |
Homogenization |
||
|
Power (kW) |
Speed (RPM) |
Power (kW) |
Speed (RPM) |
||
|
WJ-LBR10 |
10 |
0.37 |
0-63 |
1.5 |
0-6000 |
|
WJ-LBR50 |
50 |
0.75 |
0-63 |
3 |
0-6000 |
|
WJ-LBR100 |
100 |
1.5 |
0-63 |
4 |
0-6000 |
|
WJ-LBR200 |
200 |
2.2 |
0-63 |
5.5 |
0-6000 |
|
WJ-LBR300 |
300 |
3 |
0-63 |
7.5 |
0-6000 |
|
WJ-LBR500 |
500 |
4 |
0-63 |
11 |
0-6000 |
1. It has powerful mixing and emulsification functions.
2. Vacuum design can effectively remove air, prevent oxidation and bubble formation, and ensure product quality.
3. Rapid inhalation: Adopting vacuum inhalation method, effectively avoiding dust dispersion.
4. The equipment structure is sturdy and durable, and easy to operate and maintain.
5. Easy to operate: Automatic control systems are generally used, and operators only need to set relevant parameters such as mixing speed, temperature, and vacuum degree.
2. Vacuum design can effectively remove air, prevent oxidation and bubble formation, and ensure product quality.
3. Rapid inhalation: Adopting vacuum inhalation method, effectively avoiding dust dispersion.
4. The equipment structure is sturdy and durable, and easy to operate and maintain.
5. Easy to operate: Automatic control systems are generally used, and operators only need to set relevant parameters such as mixing speed, temperature, and vacuum degree.
Working Principle
1. Preparation stage
2. Enhancement and adjustment stage
3. Mixing homogenization stage
4. Vacuum processing stage
5. Emulsification completion stage
After a period of processing, the material is completely emulsified to form a uniform and stable lotion.
Add the material to be emulsified to the emulsification box through appropriate input.
Adjust the height of the mixer through the hydraulic system to meet different material requirements.
After the mixing motor and homogenization motor are started, the mixing device promotes the pre mixing of the material. The high-speed rotating homogenization head generates strong shear force, which crushes the material particles into small sizes and completely mixes various materials. Dispersion and emulsification.
Activate the vacuum system to extract air from the tank, creating a vacuum environment where bubbles quickly burst and are expelled, preventing material oxidation and improving product stability.
After a period of processing, the material is completely emulsified to form a uniform and stable lotion.
Product Applications
Hydraulic lift vacuum emulsifiers find extensive application in a variety of fields.
For the cosmetics industry, they are suitable for the production of lotions, creams and other similar products.
In the pharmaceutical industry, these emulsifiers enable the manufacturing of ointments, oral fluids and other related items.
When it comes to the food industry, they can be utilized to process sauces, juices and other such substances.
For the cosmetics industry, they are suitable for the production of lotions, creams and other similar products.
In the pharmaceutical industry, these emulsifiers enable the manufacturing of ointments, oral fluids and other related items.
When it comes to the food industry, they can be utilized to process sauces, juices and other such substances.
